What this daf system is designed to do
A dissolved air flotation system belongs near the front of a wastewater treatment train when a project needs to separate solids that do not readily settle under gravity. It is commonly evaluated where suspended matter, oils, light flocs, colour-causing material or chemically formed solids can interfere with biological treatment, discharge compliance or downstream membrane processes. The equipment is therefore best understood as a physicochemical separation platform whose result depends on both the wastewater chemistry and the hydraulic design around it.
Process logic and working principle

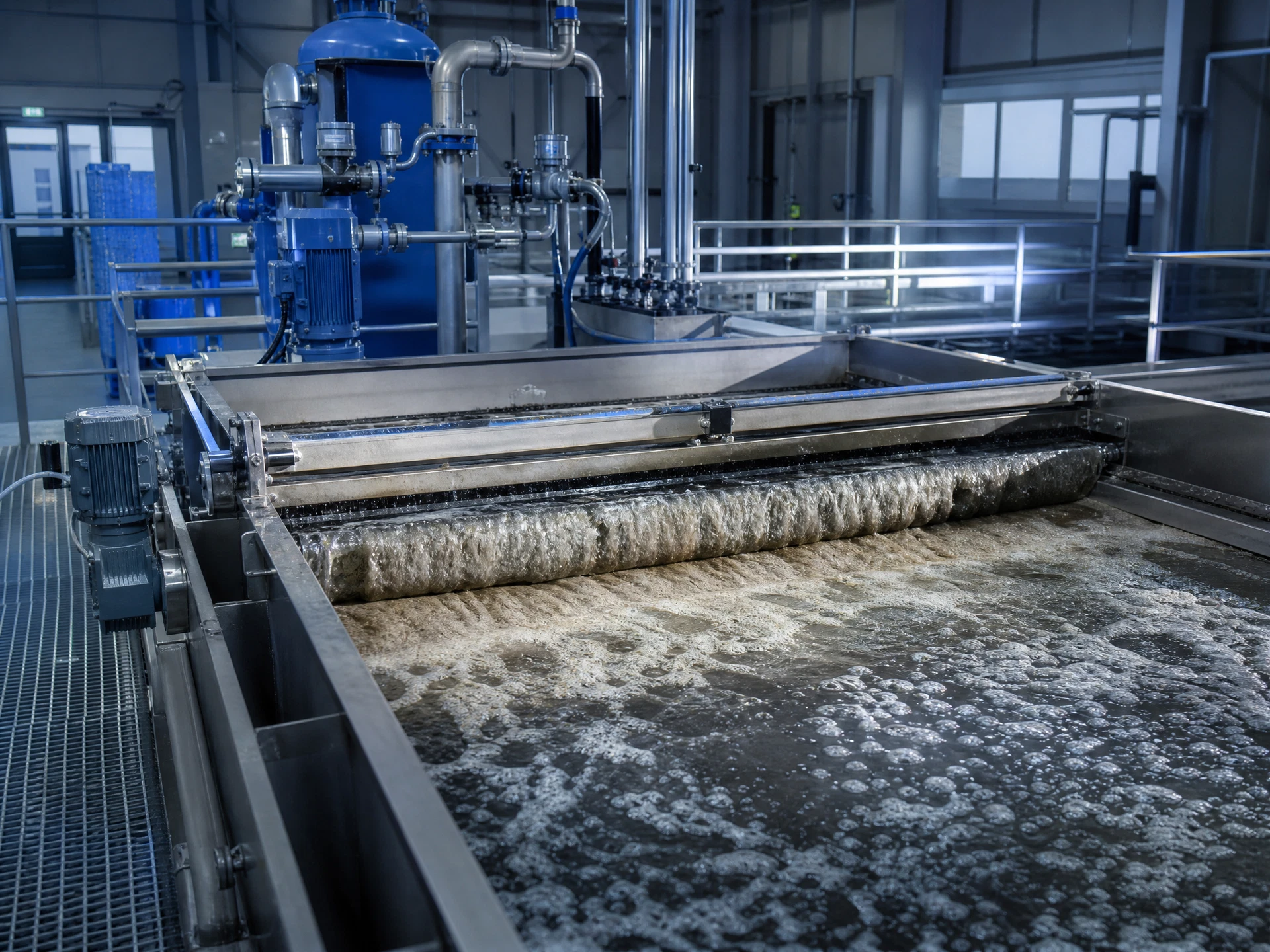

The supplied catalogue describes an integrated arrangement that includes an air-dissolving system, microbubble release devices, an external filter, a counter-flow box-type skimming system, settling collection and electrical control. Chemical conditioning is typically used upstream to create separable flocs. A controlled recycle stream becomes air-saturated under pressure and is released into the flotation zone, where fine bubbles attach to suitable flocs and lift them to the surface. Surface solids are removed by skimming while heavier settleable material may be collected separately.
Configuration should follow the actual duty
The SMQF series is shown from SMQF-05 to SMQF-300. The supplied catalogue gives a nominal actual-treatment range of approximately 4–5 to 280–300 m³/h across the range and lists principal installed power from approximately 3 to 37 kW. A complete project configuration should confirm the flotation vessel material, corrosion protection, chemical preparation, recycle and air-dissolution assembly, skimming discharge, settled solids handling, local instrumentation and controls. Those details must be aligned with the target wastewater rather than selected from a single general layout.
A disciplined route to model selection
Selection begins with a representative wastewater profile: average and peak flow, pH, temperature, suspended solids, oil and grease, CODcr, colour, density, chemistry changes and any existing coagulant or polymer data. The desired objective must also be explicit. A DAF designed to reduce loading before biological treatment is not configured in exactly the same way as a unit intended to prepare water for reuse or achieve a specified discharge condition. Treatability testing and the agreed target parameters should guide chemical choice and confirm whether flotation is the correct process step.
Connecting the unit to the wider treatment line
The DAF line typically sits after screening and equalization and before biological treatment, filtration, membrane polishing or discharge. The separated float sludge requires a coherent sludge route, often including collection, conditioning and dewatering. A polymer dosing system, screw press and shaftless screw conveyor can therefore be engineered as complementary modules around the flotation package. The project control narrative should coordinate influent flow, chemical dosage, recycle pressure, skimmer operation and sludge removal to keep the separation zone stable.
Operating attention and maintenance context
Stable flotation depends on steady hydraulics, reliable chemical conditioning, clean release devices and routine observation of the float layer. Sudden changes in pH, temperature, surfactants, oil loading or production chemistry can alter floc formation and bubble attachment. Operators should record influent condition, chemical addition, recycle condition, surface solids behaviour and outlet quality as part of a disciplined process review. Cleaning, inspection and any external filter maintenance should follow the final equipment documents and actual operating experience.
How performance should be validated
The catalogue refers to removal data for parameters such as CODcr, suspended solids, colour and selected ions as reference information only. Those values should not be interpreted as universal performance guarantees. Final expected removal should be established against a defined wastewater sample, design flow range, chemical programme and measurement method. A technical proposal should make clear which performance values are estimates, which are targets and which are contractual commitments, so that the treatment result remains traceable to the agreed basis of design.
A practical engineering review before RFQ
A technically complete request for daf system equipment should combine process data, mechanical layout data and operating expectations. Process data explains the material or water to be handled; layout data identifies access, elevation, utilities and interfaces; operating expectations identify automation level, service approach and the desired response to an upset. This information allows an equipment proposal to move from a nominal catalogue comparison to a configuration that can be reviewed by the project engineer. It is also the right point to identify what remains to be confirmed through sampling, site survey or a technical clarification. Where several products are supplied together, the package should define responsibility for every hand-off, including feed, dosing, drainage, discharge and control signals. The goal is not to make a proposal needlessly complex. It is to make the scope visible enough that the final equipment can be installed, started and maintained with the intended process role intact.
Installation planning and physical interfaces
An equipment proposal is only complete when the physical installation is understood as well as the process duty. The project team should check the receiving floor or channel arrangement, lifting access, maintenance clearance, feed and discharge elevations, drainage paths, utility connections, local isolators and the route by which components reach the final location. DAF System equipment must also be considered in relation to the machines before and after it. A carefully selected unit can still be difficult to operate if a transition chute blocks, a service door cannot open, a wash-water line is inaccessible or the downstream transfer path has no capacity. General arrangement drawings and interface schedules should therefore be reviewed early, particularly for retrofit sites. The intended sequence for transport, placement, installation, testing and commissioning should be coordinated with the plant programme. Any site responsibilities that remain outside the equipment scope should be stated explicitly so the installation plan does not depend on assumptions made by different contractors.
Controls, alarms and normal operating decisions
Automation is valuable when it makes the equipment state visible and establishes a predictable response to normal variations. The final control package should identify the relevant local controls, field signals, alarms, interlocks and connections to the plant control system. For example, a material feed condition, a low level, a high level, motor overload, poor downstream availability or a utility interruption may each require a different response. The correct logic cannot be standardized without reference to the project, because the risk of stopping a machine depends on the process around it. During technical clarification, discuss the electrical supply, desired local and remote modes, operator interface language, required feedback signals, emergency-stop philosophy, alarm reporting and responsibilities for any plant-level PLC integration. A concise cause-and-effect schedule makes these expectations readable. It also helps commissioning teams test the intended safeguards in a controlled way rather than discovering control gaps after the equipment enters service.
Operating continuity and lifecycle attention
Equipment value is achieved over the operating period, not only on the delivery date. The project specification should consider routine inspection access, cleaning provisions, normal wear parts, safe isolation, spare-parts planning and the practical skills available at the site. The relevant inspection points differ by product, but the operating principle is consistent: observe the unit while it is stable, establish normal operating indicators, and investigate meaningful changes in sound, vibration, load, leakage, material behaviour or outlet condition. A plant that records these observations can plan maintenance before a minor change affects the wider treatment line. This does not require a claim that the equipment will run without attention; it requires a realistic service strategy. When evaluating alternatives, compare the total operating arrangement, including access and interface design, rather than comparing a single catalogue power figure or an unsupported generic maintenance statement. The project documentation should specify exactly which recommended spares, manuals and support arrangements apply to the ordered configuration.
Responsible use of catalogue information
Catalogue data is essential for early screening because it allows project teams to identify families, approximate size ranges and expected configuration questions. It is not a replacement for the final design basis. The values displayed on this page are therefore presented with their source context: where the supplied catalogue states a range, the range is shown; where the catalogue does not state a universal value, the website says that the point must be confirmed. This protects decision quality and avoids creating a misleading appearance of precision. Before issuing a purchase order, the buyer should make sure that the approved proposal records the selected model, capacity basis, utility requirements, materials, dimensions, interfaces, control scope, documents and performance-validation method. That record becomes the reliable source for procurement, installation and acceptance. It is the difference between a useful product page and an unsupported promise.
Document control, scope clarity and responsible claims
Industrial wastewater equipment is evaluated against operating consequences, not only headline dimensions. For that reason, the most useful commercial documents state the supplied equipment boundary, the selected model, the utilities required, the interfaces excluded or included, the controls offered and the assumptions behind any capacity statement. DAF System proposals should separate brochure reference data from project-confirmed design values. They should also identify which parameters are to be checked after review of wastewater or solids data. This approach protects the buyer and supplier alike: it makes it easier to compare alternatives, it prevents a reference range from being mistaken for a universal guarantee and it establishes a clear agenda for technical clarification. Once the final inputs are agreed, drawings, electrical information and operating guidance can be aligned with the actual job rather than with an assumed generic installation.
From enquiry to an informed technical proposal
The next step is an RFQ that describes the site in engineering terms. Include the country and industry, expected operating schedule, project stage, flow or solids quantity, major pollutants or material characteristics, target outcome and any known utility constraints. Photographs, layout sketches and laboratory information can help a technical team identify the most relevant questions quickly. Shandong Shengmai Environmental Protection Technology Co., Ltd can use that information to structure a product discussion around the supplied catalogue range and the intended process interface. Before purchase, the final technical specification should record the assumptions that matter most: capacity basis, materials, instrumentation, electrical supply, installation limitations, documentation, commissioning support and the performance-verification method. That disciplined sequence gives every page of this website a practical purpose: helping an international project team collect the facts needed for a credible equipment decision.
